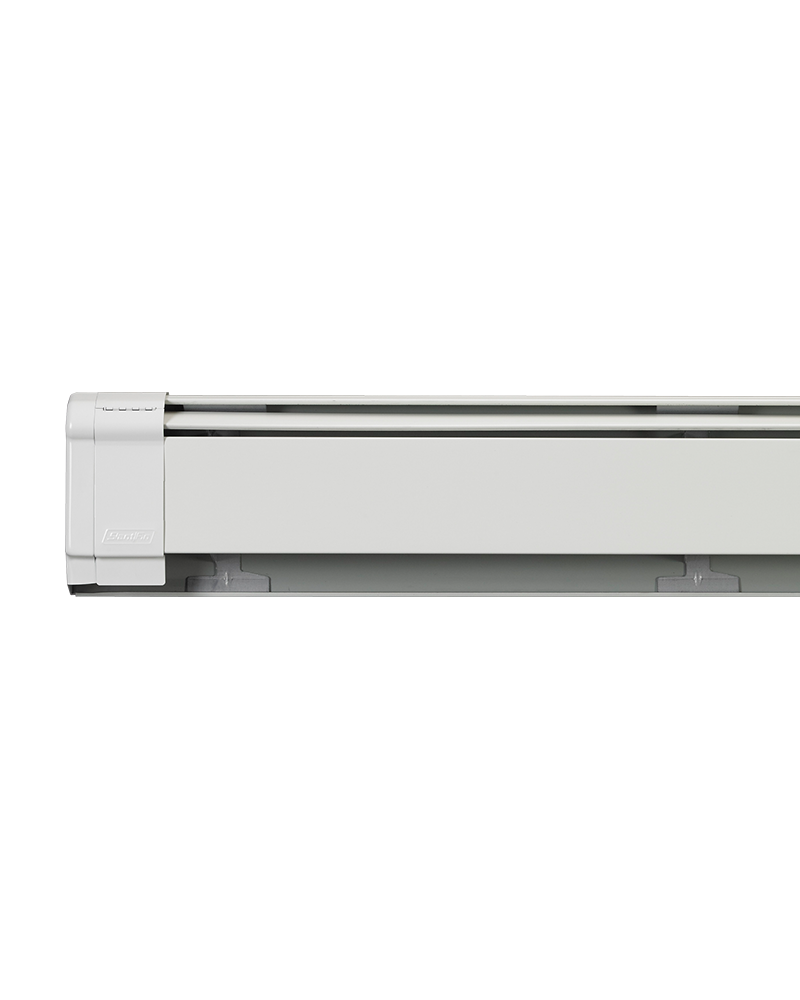

Fine/Line 30

For decades, Fine/Line 30 has been leading the industry with high quality baseboard heating. Exceptional product quality has made Slant/Fin’s Fine/Line 30 baseboard the number one choice of heating professionals. It is manufactured with contractor-friendly features for quick, trouble free installation, without annoying callbacks. 30 Series offers the widest range of matching precision accessories that are available. For over 40 years, Slant/Fin heating elements have set the industry standard for heating performance and silent performance.

Features

  • Output: 580 Btuh/FT (180 deg. 1 GPM)
  • Height: 7-7/8"
  • Depth: 2-11/16"
  • Lengths: 2'-14'
  • Application: Residential hot water heating
  • Made in the USA by the leader in baseboard heating
  • Rust-resistant, galvanized steel enclosures with nu-white enamel finish maintains beauty
  • Commercial grade material at residential cost
  • Designed for single homes, apartments and renovations
  • Optional swedged element tubes (available in 1/2" or 3/4") facilitate joining sections
  • Industry’s best high strength support brackets & no-noise expansion cradles
  • Accommodates return line with short radius return bend
  • Drawn steel end caps and wall trim provide a distinguished look
  • 1-3/4" floor-to-front cover opening promotes good air circulation for effective convection heating
  • Fully modulating, pivot mounted damper helps control individual room temperatures
  • Extendable accessories for wall-to-wall fit with no cutting makes a neat installed appearance
  • Shipped fully assembled for fast, easy installation
